Producut Feature:
1.The use of high-quality aluminum cooling materials, high thermal conductivity, rapid cooling, the perfect solution to heat problems, to ensure that the LED life;
2.Light body with high quality PC integrated sealed lens to ensure superior waterproof performance lamps;
3.Impact resistance, strong shock resistance, degree of protection to IP65;
4.Unique secondary optical design, the light shines on the required lighting area. Improve lighting efficiency;
5.With a variety of lenses to meet different lighting needs.
Application Area:
Gas stations, parking lots, waiting rooms, railway stations, ports, wharves, sports centers, construction site lighting, plant lighting, industrial lighting and other large-scale energy-saving lighting.
Technical parameters
Input Voltage
AC100-270V 50/60Hz
Light Source
LED
Explosion mark
ExnRIIT6Gc
IP
IP65
CRI
≥80
CCT
3000K-6500K
Working Temperature
-35℃~+50℃
Beam Angle
90°、120°

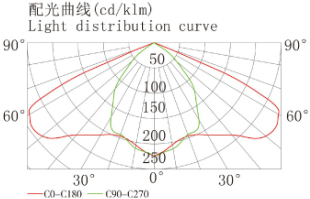

Order Notice:1.The light distribution is 90 °, variety of light distribution is valid.
Order number
Power
Luminous(lm)

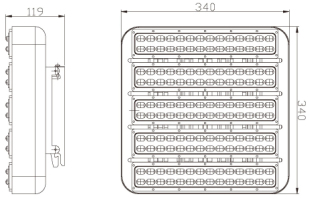

Dimensions(mm)
LCF9323-100
100W
10000
340*340*119
LCF9323-120
120W
12000
340*340*119
LCF9323-150
150W
15000
340*340*119
LCF9323-180
180W
17100
340*340*119
2.The common product with hanging installation,plead noted if require the other.
