Product Feature:
1.Energy efficient: The use of high efficiency LED light source, long service life, eliminating the frequent replacement lamp trouble and inconvenience. Configuration using new technologies wide voltage power supply processing, and to achieve constant current output, greatly improving lamp life;
2.Professional Design: One-piece streamlined tube structure, uniform and soft light projection, especially for a variety of high roofs, high places of fixed lighting. Light body with shock-absorbing materials and shock absorption structure, in a variety of high-frequency, strong vibration place long-term work;
3.Protection class: Shell protection class IP66, corrosion grade WF2, the shell will never corrode, never rust;

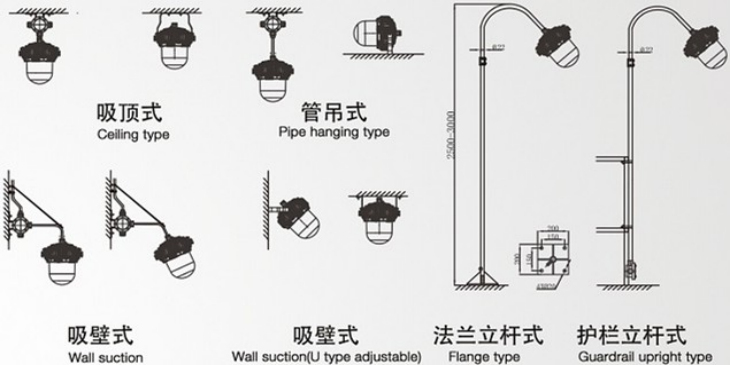

4.Installation: According to the need to use ceiling, ceiling and other installation methods;
5.Radiator using a cylindrical array of heat sink greatly avoids the conventional LED radiator will accumulate dust phenomenon. The internal use of the internal array heat sink, the light source surface temperature rapid heat transfer to the LED chip temperature balance, LED and power temperature control reasonable range of 40 degrees. Great guarantee lamp life;
6.Diffuse anti-glare transparent pieces of frosted tempered glass, steel high purity, strong resistance;
7.Light fittings on both sides with 2 G3 / 4 threaded anti-loose waterproof outlet to achieve parallel connection between lamps and lamps in series.
Application Area:
For a variety of facilities ring local lighting, such as the blast furnace platform, blast furnace trough area, belt veranda, continuous casting platform, power distribution room, underground cable sandwich, cable tunnel lighting.
Technical parameters | |
Input Voltage | AC220V 50/60Hz |
Light Source | LED |
WF | WF2 |
IP | IP65 |
Caliber | G3/4 |
Cable | φ8mm~φ14mm |

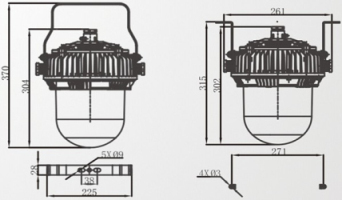

Order number | Power | Luminous(lm) | Dimensions(mm) |
LGT8612-20 | 20W | 1600lm | φ261*370 |
LGT8612-50 | 50W | 4000lm | φ261*370 |
LGT8612-80 | 80W | 6400lm | φ261*370 |
