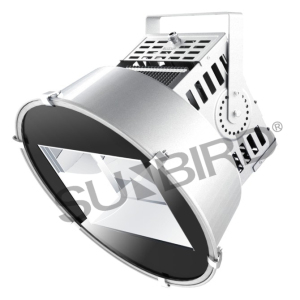

Product Feature:
1.Lamp body uses a unique fin-type cooling structure design, 3D three-dimensional cooling, creating air convection space channel, efficient cooling;
2.Each piece of fins to maintain the same spacing are close together to form a whole, effectively enhance the fins firmness, with the smallest weight to achieve the largest heat dissipation area;
3.Fins and cooling the bottom plate tightly plugged to minimize the thermal resistance, no plating, beautiful and environmentally friendly;
4.High-purity aluminum reflector, anti-oxidation, anti-discoloration, good reflective effect, with a narrow angle of 30 °, wide angle 90 ° and narrow angle of 60 °, wide angle 90 ° square reflector optional to meet the professional light distribution;
5.Shade respirator design, balance lamp pressure difference between inside and outside, waterproof and clear the fog at the same time, to avoid condensation, greatly reducing salt corrosion caused by product failure, extended service life and trouble-free maintenance-free;
6.Screw-locking attachment installation, a number of stent adjustment point, adjustable at least 180 °, light irradiation angle of random change;
7.Silicone ring sealing process and waterproof connectors, protection grade IP65, to meet the requirements of a variety of outdoor harsh environments;
8.4mm tempered glass panel, high intensity light source, and the light transmittance of 93% or more;
9.The whole light powder baking process, bright and no discoloration, less corrosion.
Application Area:
Widely used in construction sites, tower cranes, docks, squares, stadium lighting.
Technical parameters | |
Input Voltage | AC100-240V 50/60Hz |
Light Source | LED |
IP | IP65 |
CRI | ≥80 |
CCT | 3000K-6500K |
Working Temperature | -40℃~+50℃ |
Beam Angle | 30*90°、60*90° |
Order number | Power | Luminous(lm) | Dimensions(mm) |
LGT8512-300 | 300W | 36000lm | 508*476 |
