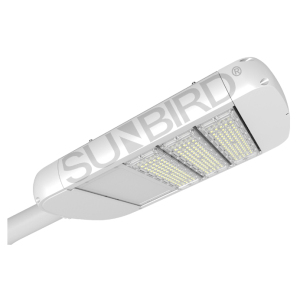

Product Feature:
1.Streamlined design, the appearance of rounded, modeling lightweight, cost savings;
2.Modular design, easy replacement, assembly and maintenance;
3.Arc cover hollow design, which will help heat;
4.All screws, nuts, etc. are made of high quality SUS304 stainless steel, has good corrosion resistance and heat resistance, rust does not fall off for a long time, to ensure that the product is solid and reliable;
5.Radiator using aluminum with high purity and purity, is a high corrosion resistance and high thermal conductivity of industrial aluminum. Outstanding performance, can reach the general thermal conductivity of aluminum alloy is difficult to achieve;
6.Shell ASA engineering plastics, the main structure of the stamping process manufacturing, baking process powder processing, with strong weathering, high temperature and anti-static function, which can effectively resist UV degradation, aging, fading and other issues to reduce dust accumulation and maintenance Product cleaning.
Application Area:
Widely used in trunk roads, highways, elevated roads, streets, flyovers, sidewalks and other road lighting, as well as square schools, parks and other outdoor venues.
Technical parameters | |
Input Voltage | AC100-240V 50/60Hz |
Light Source | LED |
IP | IP65 |
CRI | ≥80 |
CCT | 3000K-6500K |
Order number | Power | Luminous(lm) | Dimensions(mm) |
LZD7126-30 | 30W | 3600lm | 417*330*109 |
LZD7126-60 | 60W | 7200lm | 493*330*109 |
LZD7126-90 | 90W | 10800lm | 569*330*109 |
LZD7126-120 | 120W | 14400lm | 645*330*109 |
LZD7126-150 | 150W | 18000lm | 721*330*109 |
LZD7126-180 | 180W | 21600lm | 797*330*109 |
