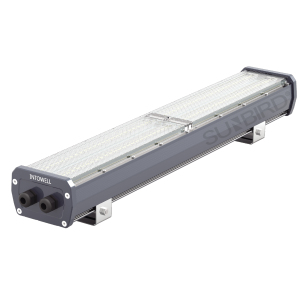

Product Feature:
1.Compact extruded aluminum with metal die-cast end cap, anodized surface;
2.Luminous surface using high quality PC material lens, anti-corrosion, anti-UV, impact-resistant;
3.One end of the lamp is equipped with a special waterproof input port and the other end is reserved for an empty port, which can be changed to an input port or an output port according to the actual situation.
Application Area:
Mainly used for underground pipe gallery in the city, but also can do more auxiliary lighting under harsh environment (waterproof, anti-corrosion, anti-vibration field.
Technical parameters | |
Input Voltage | AC100-270V 50/60Hz |
Light Source | LED |
IP | IP65 |
CRI | ≥80 |
CCT | 3000K-6500K |
Working Temperature | -20℃~+45℃ |
Order number | Power | Luminous(lm) | Dimensions(mm) |
LFY6400-115 | 15W | 1800lm | 259*51*69 |
LFY6400-130 | 30W | 3600lm | 501*51*69 |
LFY6400-145 | 45W | 5400lm | 742*51*69 |
LFY6400-160 | 60W | 7200lm | 983*51*69 |
LFY6400-175 | 75W | 9000lm | 1224*51*69 |
LFY6400-220 | 20W | 2400lm | 259*90*69 |
LFY6400-240 | 40W | 4800lm | 501*90*69 |
LFY6400-260 | 60W | 7200lm | 742*90*69 |
LFY6400-280 | 80W | 9600lm | 983*90*69 |
LFY6400-2100 | 100W | 12000lm | 1224*90*69 |
